In laboratory and cleanroom settings, laminar flow benches play a crucial role in maintaining a contamination-free environment. These benches are designed to provide a smooth, continuous flow of filtered air, ensuring the integrity of sensitive experiments and processes.
Horizontal Laminar Flow Benches, Vertical Laminar Flow Benches
The choice between horizontal laminar flow benches and their vertical counterparts can be daunting, given the specific requirements of different applications. Understanding the differences between these two types is essential for selecting the right equipment for your needs.
Key Takeaways
- Understanding the differences between horizontal and vertical laminar flow benches is crucial for laboratory and cleanroom applications.
- The choice of laminar flow bench depends on specific application requirements.
- Laminar flow benches provide a contamination-free environment.
- Horizontal and vertical laminar flow benches have distinct design and functionality differences.
- Selecting the right laminar flow bench ensures the integrity of sensitive experiments and processes.
Understanding Laminar Flow Technology
Understanding laminar flow technology is essential for appreciating the functionality of HEPA airflow benches. Laminar flow technology is a critical aspect of maintaining a controlled environment in various industries, including pharmaceuticals, electronics, and research laboratories.
Principles of Unidirectional Airflow
The principle of unidirectional airflow is fundamental to laminar flow technology. It involves moving air in one direction, either horizontally or vertically. This helps prevent turbulence and contamination. We achieve this unidirectional airflow using HEPA filters. These filters clean and filter the air before it circulates in the workspace.
HEPA Filtration Systems and Efficiency Ratings
HEPA filtration systems are an important part of laminar flow benches. They efficiently remove airborne particles. HEPA filters are rated by how well they catch particles of a certain size, usually 0.3 microns. The table below shows the efficiency ratings of different HEPA filters:
| HEPA Filter Type | Efficiency Rating | Particle Capture Size |
| Standard HEPA | 99.97% | 0.3 microns |
| High-Efficiency HEPA | 99.99% | 0.1 microns |
| Ultra-HEPA | 99.999% | 0.01 microns |
Horizontal Laminar Flow Benches: Design and Operation
Understanding the design and operational aspects of horizontal laminar flow benches is vital for their effective use in research settings. These benches are engineered to provide a controlled environment that is crucial for various laboratory applications.
Airflow Patterns and Dynamics
The airflow in horizontal laminar flow benches is designed to be unidirectional, ensuring that clean air flows smoothly across the work surface. This unidirectional airflow is critical in preventing turbulence that could disrupt the sterile environment. The benches are equipped with HEPA filtration systems that remove particles as small as 0.3 microns, ensuring high air quality.
Critical Components and Construction Features
Horizontal laminar flow hoods consist of essential components like HEPA filters, a sturdy frame, and an advanced airflow system. Made from easy-to-clean, corrosion-resistant materials, they ensure durability and low maintenance. Their design minimizes noise and vibration, creating a comfortable workspace while optimizing airflow for various laboratory applications.
Vertical Laminar Flow Benches: Design and Operation
Vertical laminar flow benches offer a unique solution for applications requiring unidirectional airflow in a downward direction. This design is particularly beneficial in environments where both product and personnel protection are critical.
Downward Airflow Mechanics
The downward airflow in vertical laminar flow benches is designed to sweep particles and contaminants away from the work area, minimizing the risk of contamination. This is achieved through a combination of HEPA or ULPA filtration systems and a carefully designed airflow pattern that ensures a smooth, laminar flow of air.
The mechanics of downward airflow involve the use of fans or blowers that push air through the filtration system, which then distributes the clean air downward across the work surface. This creates a protective barrier between the work and the external environment.
Essential Components and Structural Elements
Vertical laminar flow benches consist of key components essential for operation, including:
- HEPA or ULPA filters to eliminate air contaminants.
- A sturdy frame that supports filters and fans while providing a stable work surface.
- A control system to monitor and adjust airflow for cleanliness.
These benches are built with durable, corrosion-resistant materials for longevity and compatibility with the work environment.
Horizontal vs. Vertical Laminar Flow Benches: Key Differences
When it comes to laminar flow workstations, understanding the differences between horizontal and vertical configurations is crucial for selecting the right equipment. The primary distinctions lie in their airflow direction, efficiency, contamination control capabilities, and workspace configuration.
Airflow Direction and Efficiency Comparison
Horizontal laminar flow benches direct airflow from back to front, creating unidirectional flow that minimizes turbulence. Vertical laminar flow benches, with airflow from top to bottom, can be more effective in specific applications. Their efficiency relies on HEPA filtration and airflow design. Horizontal benches are better for operator surface work, while vertical benches protect products from operator contamination.
Contamination Control Capabilities
Both bench types offer high contamination control, but effectiveness varies by application. Vertical benches excel at preventing operator contamination by directing particles away from products. Horizontal benches may be more prone to contamination from hands and tools, though proper design can mitigate this risk.
Workspace Configuration Variations
Workspace configuration affects usability. Horizontal benches provide flexible arrangements for equipment, while vertical benches require careful planning to enhance contamination control.
Product Protection Effectiveness
Horizontal laminar flow benches are often preferred for applications requiring high product protection, as they provide a unidirectional airflow that minimizes turbulence and prevents contamination. In contrast, vertical laminar flow benches offer excellent product protection by directing airflow downward, reducing the risk of particle contamination.
Operator Safety Considerations
Vertical laminar flow benches are particularly noted for their ability to enhance operator safety by containing potentially hazardous materials within the work area. Meanwhile, horizontal laminar flow benches also provide a safe working environment, though they may require additional safety measures for certain applications.
Environmental Contamination Prevention
Both vertical and horizontal laminar flow benches prevent environmental contamination but do so differently. Vertical flow benches better contain hazardous substances. Choosing between them should depend on an analysis of required protection levels for product, operator safety, and contamination prevention.
Applications of Horizontal Laminar Flow Benches
The versatility of horizontal laminar flow benches makes them indispensable in multiple sectors. These benches provide a controlled environment that is crucial for various industrial and research applications.
Pharmaceutical and Medical Device Manufacturing
In the pharmaceutical and medical device manufacturing industries, horizontal laminar flow benches are used to ensure the production of sterile products. They provide a clean environment that minimizes the risk of contamination, adhering to stringent regulatory standards.
Electronics and Semiconductor Assembly
Horizontal laminar flow benches are also critical in the electronics and semiconductor assembly sectors. They help in maintaining a dust-free environment, which is essential for the production of sensitive electronic components.
Research Laboratory Applications
In research laboratories, horizontal laminar flow benches are utilized for various scientific experiments that require a controlled atmosphere. They help in preventing contamination and ensuring the integrity of the research data.
The use of horizontal laminar flow benches across these industries highlights their importance in maintaining high standards of cleanliness and product integrity.
Applications of Vertical Laminar Flow Benches
In environments where contamination control is paramount, vertical laminar flow benches play a vital role. These benches are designed to provide a clean working area by maintaining a downward flow of filtered air, thus minimizing the risk of airborne contamination.
Biological and Microbiological Research
Vertical laminar flow benches are extensively used in biological and microbiological research for handling sensitive cultures and samples. The controlled environment they provide is crucial for the integrity of experiments and the safety of personnel.
Pharmaceutical Compounding Applications
Pharmaceutical compounding demands strict cleanliness to avoid contamination. Vertical laminar flow benches are essential for sterile preparations, ensuring adherence to regulatory standards.
The following table summarizes the key applications of vertical laminar flow benches:
| Application Area | Key Benefits |
| Biological and Microbiological Research | Maintains sample integrity, ensures personnel safety |
| Cell Culture and Tissue Processing | Provides sterile workspace, reduces contamination risk |
| Pharmaceutical Compounding | Ensures product sterility, complies with regulatory standards |
Space Requirements and Ergonomic Considerations
Laboratories must consider both the spatial requirements and ergonomic factors of laminar flow benches to optimize their workflow. The effective integration of these workstations into a laboratory setting is crucial for productivity and safety.
Operator Comfort and Work Efficiency
Operator comfort is vital in designing lab laminar flow benches. Ergonomic workstations reduce fatigue, enhance productivity, and create a safer environment by minimizing the risk of operator error.
Maintenance Protocols and Operational Costs
The long-term efficiency and cost-effectiveness of laminar flow benches depend on proper maintenance protocols and understanding their operational costs. Laboratories investing in HEPA filter benches or airflow benches must consider these factors to maximize their benefits.
Filter Replacement and Certification Requirements
Regularly replacing HEPA filters is essential for effective laminar flow benches, typically every 1–3 years based on usage. Laboratories must also comply with certification requirements like ISO 14644 for cleanliness and efficiency.
Total Cost of Ownership Comparison
Laboratories should evaluate the total cost of ownership beyond just the purchase price, factoring in maintenance, energy use, HEPA filter replacement, and certifications for horizontal and vertical laminar flow benches.
Comparative Cost
Prices are indicative and vary depending on size, features (such as automation and advanced monitoring), accessories, manufacturer, and city. For special Cleanair® models or custom setups, check the official product catalog. You can also contact Cleanair® directly for a quote.
Indian Market Overview: Leading Manufacturers and Models
The Indian market for laminar flow benches is witnessing significant growth due to increasing demand from pharmaceutical and biotechnology industries. This growth is driven by the need for contamination control and precision in various manufacturing and research processes.
Manufacturers of Laminar Flow Benches
India is home to several reputable manufacturers of laminar flow benches, including companies like Macro Scientific Works, Labocon and CleanAirIndia, which are known for their high-quality products and innovative designs. These domestic manufacturers cater to a wide range of industries, from pharmaceuticals to electronics.
Cleanair® Laminar Flow Benches: Models & Technical Specifications
Cleanair offers a comprehensive range of horizontal and vertical laminar flow benches, engineered for reliable contamination control across diverse laboratory and industrial environments. You can also explore models tailored for specific regions like our Chennai-based solutions.
Cleanair® Laminar Airflow Cabinets
Engineered for Precision. Built for Performance.
When your laboratory demands an ultra-clean, particle-free environment, trust the reliability and innovation behind Cleanair® Vertical and Horizontal Laminar Airflow Cabinets. Designed to support a wide range of contamination-sensitive operations, these systems deliver consistent Class 100 air cleanliness with ISO 14644 compliance, making them an essential component in any research, testing, or production environment.

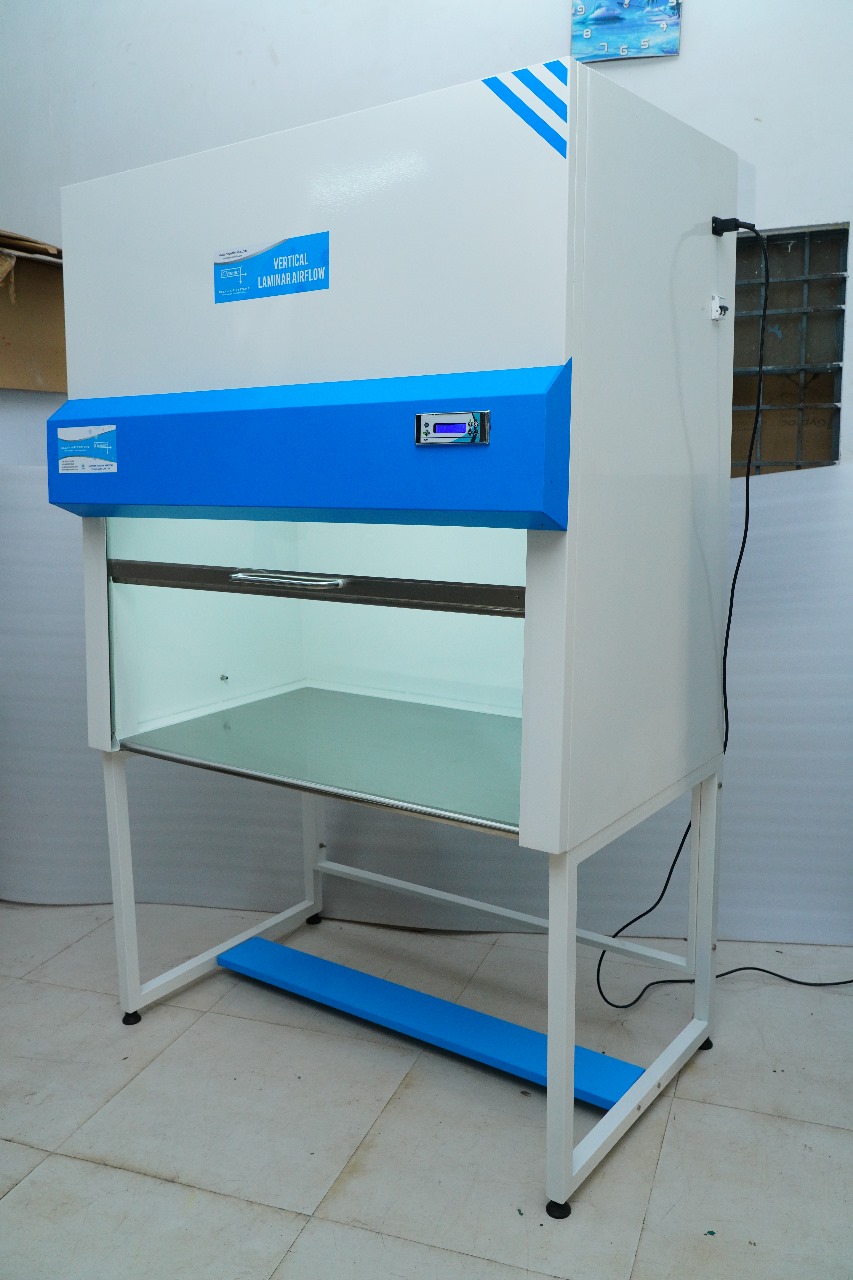

Vertical Laminar Airflow (Model: CAV Series)
Ideal for microbiological culture work, sterile preparation, and cleanroom-compatible non-hazardous analytical applications. The vertical flow of HEPA-filtered air minimizes turbulence, offering enhanced protection for both samples and technicians.

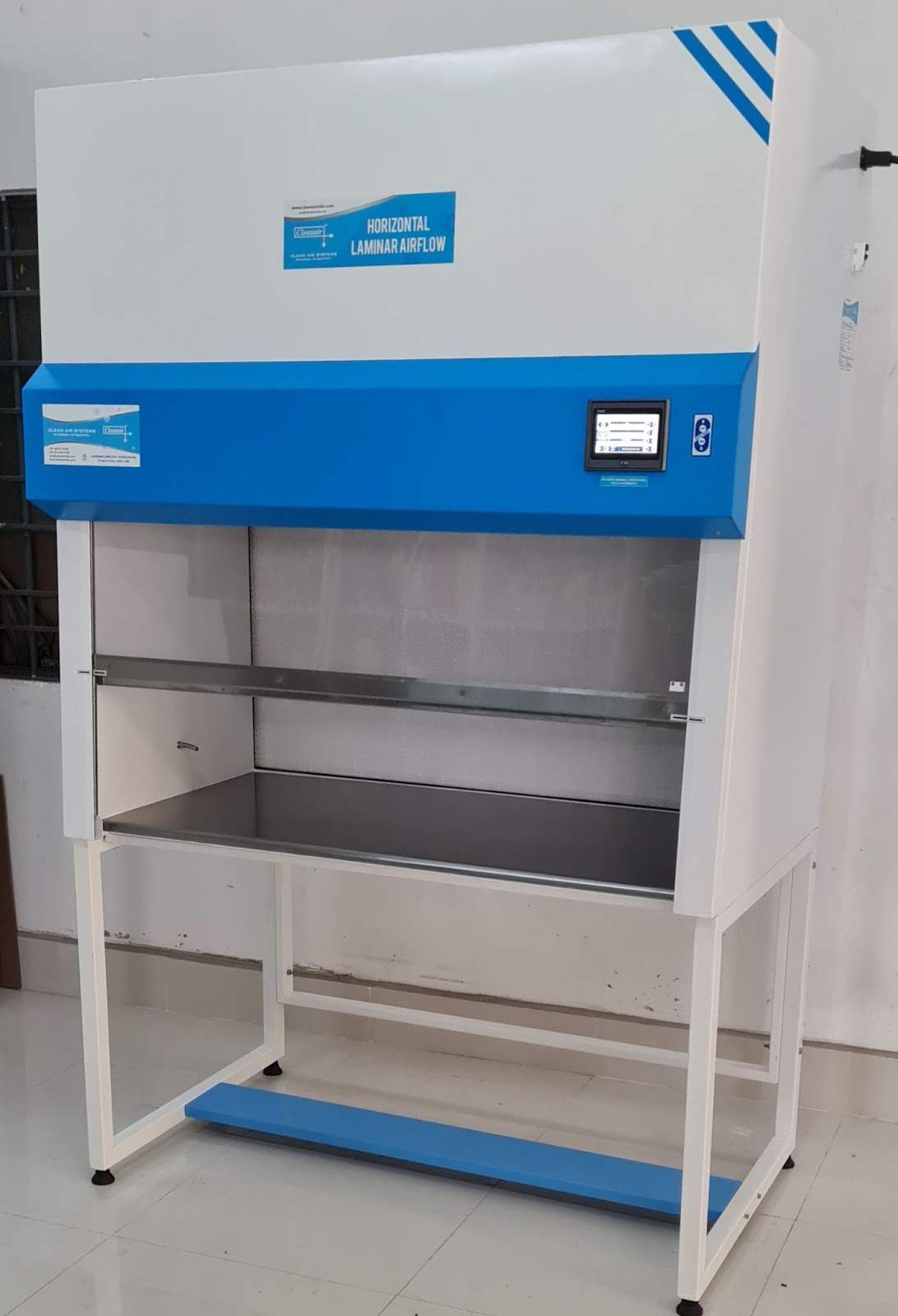

Horizontal Laminar Airflow (Model: CAH Series)
Optimized for plant tissue culture, instrument calibration, and particulate-sensitive processes. The rear-to-front laminar flow pattern ensures a smooth, unobstructed workspace ideal for precision-driven lab environments.
| Model Nos. | Length mm Inner/Outer | Depth mm Inner/Outer | Height mm Inner/Outer |
| CAV / CAH 600 | 600 / 680 | 600 / 750 | 600 / 2000 |
| CAV / CAH 900 | 900 / 1000 | ||
| CAV / CAH 1200 | 1200 / 1300 | ||
| CAV / CAH 1800 | 1800 / 1900 |
* Need a different size? We also offer fully custom-built laminar airflow units to meet your exact lab layout and process requirements.
Whether you’re outfitting a new lab or upgrading for compliance and efficiency, Cleanair® Laminar Airflow Cabinets combine engineering excellence with unmatched functionality. Explore our full range at CleanAir India.
Conclusion
Laboratories and cleanrooms rely heavily on laminar flow benches to maintain a contamination-free environment. The choice between horizontal & vertical laminar flow benches and vertical depends on specific applications and requirements.
Horizontal laminar flow benches are best for product protection in electronics and semiconductor assembly, while vertical benches prioritize operator safety in biological research.
When selecting a laminar flow bench, consider airflow patterns, filter efficiency, and workspace layout. Understanding the differences between horizontal and vertical benches is crucial for meeting specific laboratory or cleanroom needs.
Selecting the appropriate laminar flow bench helps laboratories and cleanrooms uphold cleanliness and reduce contamination risks. Both horizontal and vertical options are vital for maintaining the integrity of sensitive processes and experiments.
How to Select the Right Model
- Assess space: Choose the size that fits your work area (widths typically 3ft, 4ft, 5ft; custom on demand).
- Define your application:
- Horizontal: Best for electronics assembly, product-centric sterile processes.
- Vertical: Ideal for microbiology, pharma compounding, and processes needing top-down airflow.
- Control requirements: Opt for basic or PLC/advanced models as needed.
- Material preference: SS 304 for GMP/pharmaceutical, MS powder-coated for general labs.
Need help?
Request the latest Cleanair® catalog or contact Cleanair®’s technical team for detailed quotations, application matching, and after-sales support.
CLEAN AIR SYSTEMS
No. 4, Senthil Nagar, 100 Feet Road, Chennai – 600 106, (Near Arumbakkam Metro) Tamil Nadu, India.
Phone
(+91) 9841074504 | (+91) 9551130762 | (+91) 9551119111 | 044 – 48697975
Email- ravi@cleanairindia.com
FAQ
What is the main difference between horizontal and vertical laminar flow benches?
The primary difference lies in the direction of airflow. Horizontal laminar flow benches have airflow coming from the back towards the front, while vertical laminar flow benches have airflow directed downwards from the top.
Which type of laminar flow bench is best for product protection?
Horizontal laminar flow benches are generally considered better for product protection as they provide a clean airflow directly onto the work surface, minimizing the risk of contamination.
Are laminar flow benches suitable for use with hazardous materials?
Vertical laminar flow benches, also known as biological safety cabinets, are designed to handle hazardous materials by providing a contained environment and protecting the operator from exposure.
How often should HEPA filters be replaced?
HEPA filters typically need to be replaced every 1-3 years, depending on usage and manufacturer recommendations. Regular certification and testing are necessary to ensure filter efficiency.
Can laminar flow benches be used in pharmaceutical manufacturing?
Yes, both horizontal and vertical laminar flow benches are used in pharmaceutical manufacturing for various applications, including compounding and packaging, to maintain a controlled environment.
What are the key considerations for laboratory layout planning with laminar flow benches?
Key considerations include ensuring adequate space around the laminar flow bench, minimizing obstacles and traffic flow nearby, and optimizing the layout for workflow efficiency.
How do laminar flow benches contribute to operator comfort and work efficiency?
Laminar flow benches can enhance operator comfort by providing a quiet, controlled environment. Ergonomic design features, such as adjustable height and comfortable working surfaces, also contribute to work efficiency.
What are the energy consumption implications of using laminar flow benches?
Laminar flow benches consume energy to power fans and maintain airflow. Energy-efficient models and optimized operating practices can help minimize energy consumption.
Are there specific regulatory standards for laminar flow benches in India?
Yes, Indian laboratories must comply with local regulations and international standards, such as those set by the Indian Standards Bureau and ISO, for the installation, operation, and maintenance of laminar flow benches.
